Profiled Conveyor Belt

Usage

Profiled conveyor belts are suitable for conveying powder, granular, small lump of materials at the gradient of no more than 40°, and can also convey packaged materials, widely used in coalmines, electricity, chemical industries, grains, etc.

Characteristics

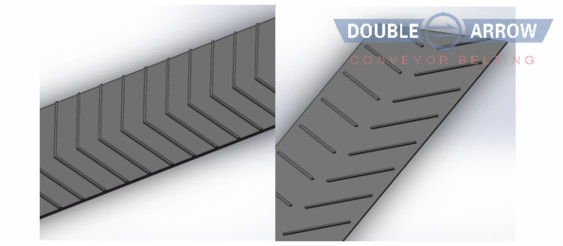

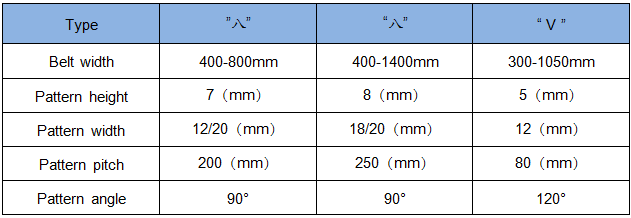

Pattern type: “八” shape, “V” shape, etc.


Structure

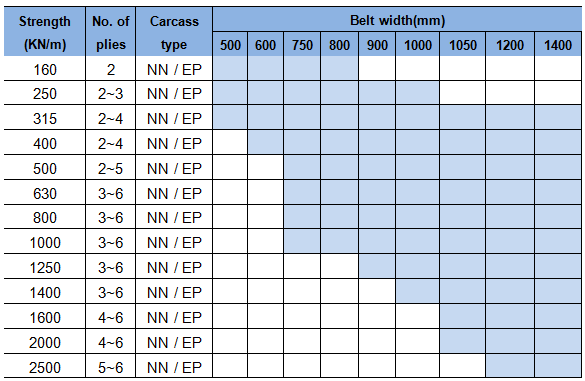

Standard Specifications


Note: It can be customized according to customers’ requirements.

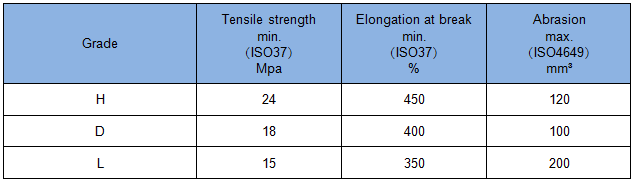

Cover Grades

In accordance with ISO14890-2013 standard


The values will help to determine the appropriate cover compound for the application or for the materials carries. Reliable assessment of the behavior of the covers in service for wear and cut resistance cannot be determined from tensile strength, and abrasion values alone.
